10-inch ojuomi afamora Dredger

Qingzhou Jinqi Mining Machinery Co., Ltd. jẹ olupilẹṣẹ alamọdaju ti ohun elo gbigbẹ ni Ilu China, pẹlu iriri lọpọlọpọ ni iṣelọpọ ti awọn apẹja mimu gige. Dredger gige gige 10-inch jẹ ọja flagship ti Jinqi ni okeere ti ohun elo gbigbẹ.

Fi ibeere ranṣẹ

ọja Apejuwe

Dredger gige gige 10-inch jẹ orukọ lẹhin iwọn ila opin ifunjade akọkọ rẹ ti awọn inṣi 10, eyiti o tọka taara agbara gbigbe ti ohun elo naa. Gẹgẹbi ohun elo mojuto fun jijo odo, iwakusa iyanrin, isọdọtun ifiomipamo ati awọn ohun elo miiran, o ṣe ẹya ṣiṣe giga, iduroṣinṣin ati ilowo. Pẹlu ọja yii, Qingzhou Jinqi Mining Machinery Co., Ltd. ti di olutaja ohun elo gbigbẹ igbẹkẹle fun ọpọlọpọ awọn ile-iṣẹ imọ-ẹrọ.

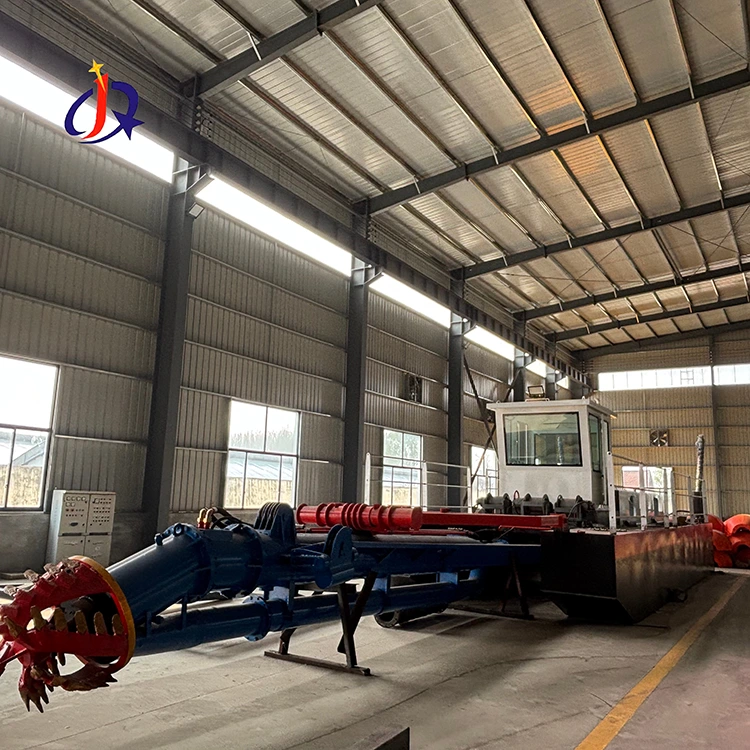

10-inch Cutter Suction Dredger

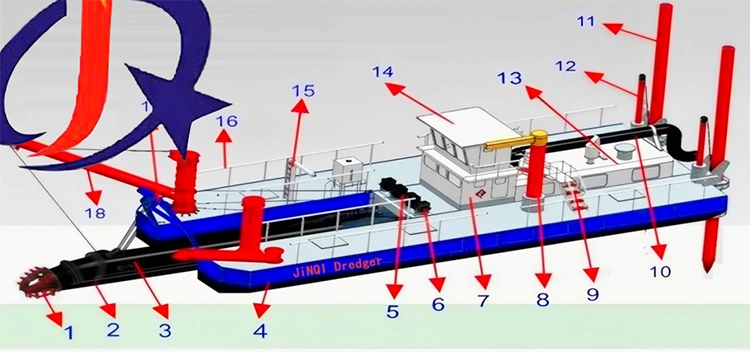

Tiwqn ọja

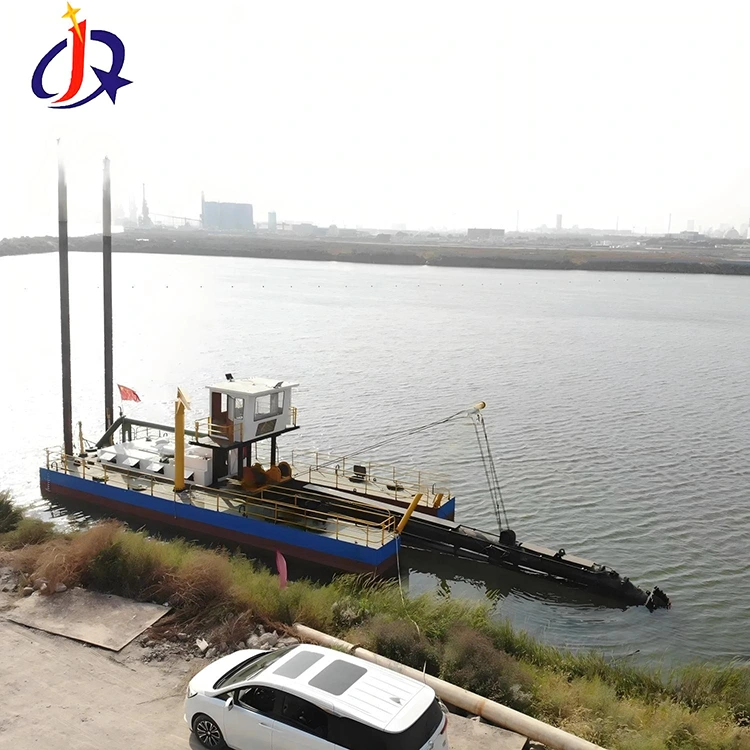

10-inch Cutter Suction Dredger

RARA.	Oruko	RARA.	Oruko	RARA.	Oruko
1	Olupin	7	Yara isinmi	13	Enjini Pontoon
2	afamora Pipe	8	Dekini Kireni	14	Iwakọ agọ
3	oko ojuomi akaba	9	Àkàbà	15	Wiwọn Ijinle
4	Ẹgbẹ Pontoon	10	Sisọ Pipe	16	Rall
5	Akaba Winch	11	Spud	17	Akaba Gantry
6	Swing Winch	12	Silinda hydraulic	18	Anchor Ariwo

Paramita Nkan	Standard Specification	asefara Range
Ijinle Dredging	10m	8--20m
Ṣiṣan omi	1200m³	1000---1200m³
Ri to Mimu Agbara	240m³	200----300m³
Iyatọ Sisọjade ti o pọju	1500m³	1000---2000m³
Ìwò Dimension	19.5×4.2×1.5m	16-20× 3.8-4.5× 1.2-1.8m
Apapọ iwuwo	50t	35-60t
Ẹrọ akọkọ	Weichai, 500kw	Mitsubishi, 240-800kw
Oju gige	Opin 900mm, Agbara 150kw	800-1000mm, 80-200kw; Alloy Eyin / Rock Eyin
Oran Ariwo Ipari	6m	5-7m
Spud Carrier Ọpọlọ	3m	2---4m
Eefun ti System	Rexroth (Akọsilẹ oke ti kariaye)	Yuken/Vickers Yiyan
Iyanrin fifa	Shijiazhuang Industrial Factory	Ẹya Isọdi-Atako ti o gaju

10-inch Cutter Suction Dredger

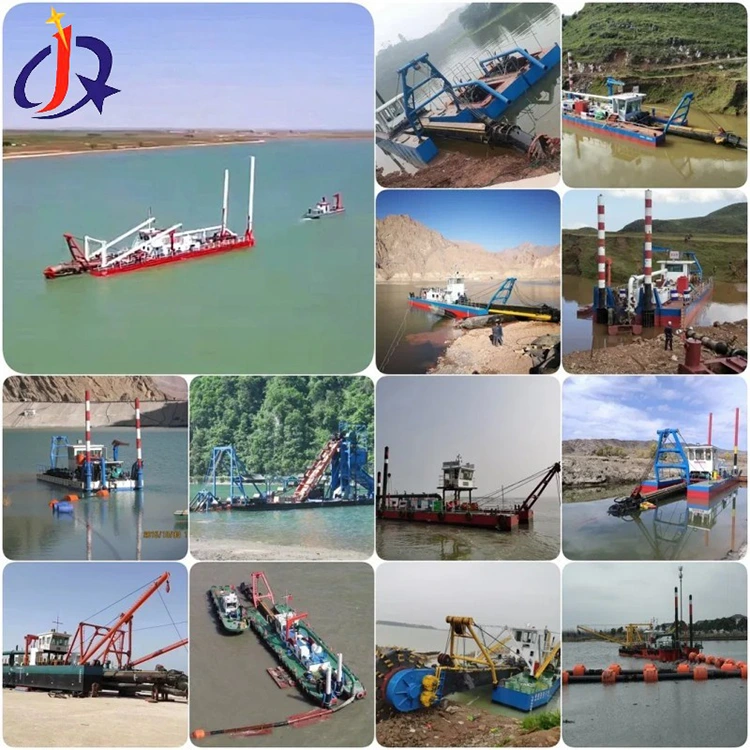

Ohun elo ọja

Dredger gige gige 10-inch jẹ lilo ni akọkọ ni awọn agbegbe omi kekere ati alabọde. Awọn ohun elo deede pẹlu:

1. Odò gbígbẹ ati silt yiyọ

2. Desilting ti kekere ati alabọde-won adagun, adagun ati reservoirs

3. Dredging itọju ni awọn agbegbe omi aijinile ti awọn ebute oko oju omi ati awọn okun

4. Odò iyanrin fifa ati iyanrin iwakusa

5. Placer goolu iwakusa ati isediwon ni aijinile etikun ati odo agbegbe

6. Atunṣe hydraulic kekere-kekere ati fifun iyanrin cofferdam

7. Ṣiṣan omi omi ati atunkọ omi ikudu ẹja

10-inch Cutter Suction Dredger

Nipa re

Qingzhou Jinqi Mining Machinery Co., Ltd. jẹ olupilẹṣẹ atilẹba ọjọgbọn ti ohun elo gbigbẹ ati ohun elo isediwon goolu, iṣakojọpọ R&D, apẹrẹ, iṣelọpọ, tita ati awọn iṣẹ ilana ni kikun. Nini awọn afijẹẹri fun apẹrẹ ọkọ oju-omi ati ikole, a ṣe amọja ni iṣelọpọ ti adani ati imudara imọ-ẹrọ ti awọn ohun elo hydraulic gẹgẹbi awọn ohun elo mimu gige, awọn ohun elo fifọ, awọn ohun elo iwakusa goolu ati ohun elo yiyọ silt.

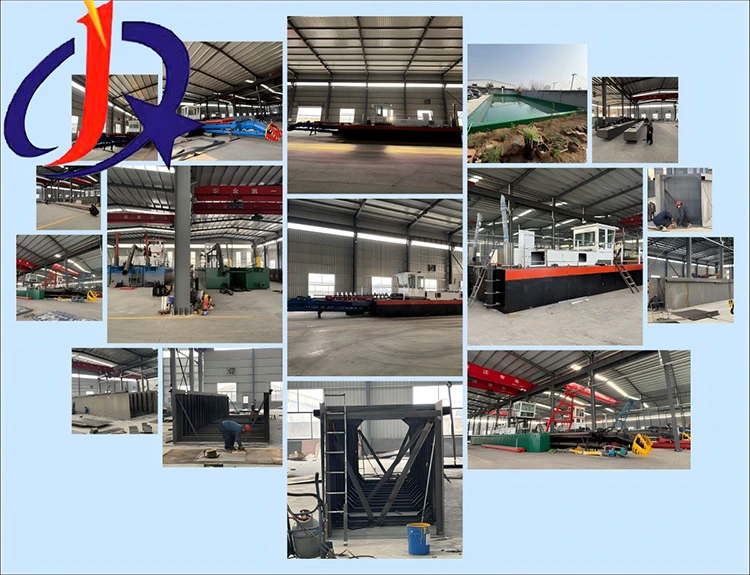

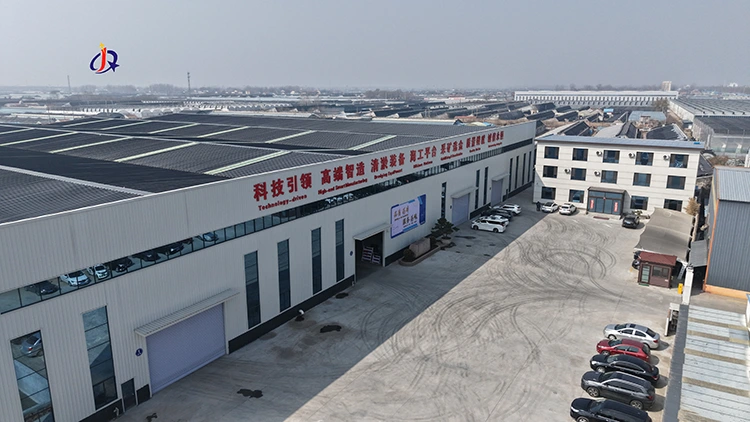

Ti o da ni igbanu iṣelọpọ Qingzhou ni Agbegbe Shandong, ile-iṣẹ naa ni idanileko iṣelọpọ 20,000-square-mita ti ara ẹni ti a ṣe ati imuse ni muna eto iṣakoso didara ISO9001. Idojukọ lori iduroṣinṣin, agbara, ṣiṣe giga, fifipamọ agbara ati isọdọtun to lagbara, a ti ṣe agbekalẹ awọn ọja ni kikun pẹlu awọn ohun elo mimu gige gige, eyiti a lo ni lilo pupọ ni gbigbẹ odo, desilting lake, itọju ibudo, hydraulic reclamation, iwakusa iyanrin odo, isediwon goolu placer ati awọn ohun elo miiran.

Gẹgẹbi ile-iṣẹ orisun ti ara, a fojusi si isọdọtun imọ-ẹrọ ati pataki didara. A le pese awọn solusan ti a ṣe deede ni ibamu si awọn ohun-ini irin ti awọn alabara, awọn ipo ilẹ, awọn ibeere iṣelọpọ ati awọn isunawo, fifunni awọn iṣẹ iduro kan ti o bo iwadi lori aaye, apẹrẹ ilana, iṣelọpọ ati iṣelọpọ, fifi sori ẹrọ ati fifisilẹ, ikẹkọ imọ-ẹrọ, ati atilẹyin igbesi aye lẹhin-tita.

10-inch Cutter Suction Dredger

Fidio ti o wa ni isalẹ ṣe afihan iṣẹ isediwon goolu ti o munadoko nipa apapọ apapọ ohun elo mimu gige ti a ṣe nipasẹ Qingzhou Jinqi Ẹrọ Iwakusa ati iwakusa goolu ti eti okun ati apakan ohun elo iṣelọpọ.

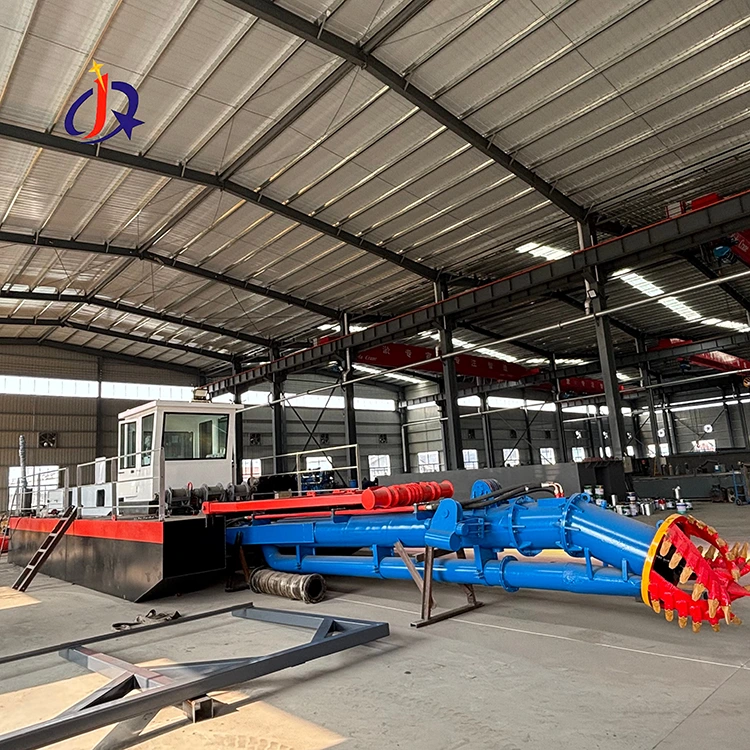

Lọwọlọwọ a ni awọn dredgers gige gige 10-inch ni iṣura ni idanileko wa. Ti o ba nifẹ si rira, jọwọ lero ọfẹ lati kan si wa!
